LBL-2000-11DBG-Lug Style Butterfly valve 150# Shut-off

SKU: LBL-2000-11DBG Categories: ,

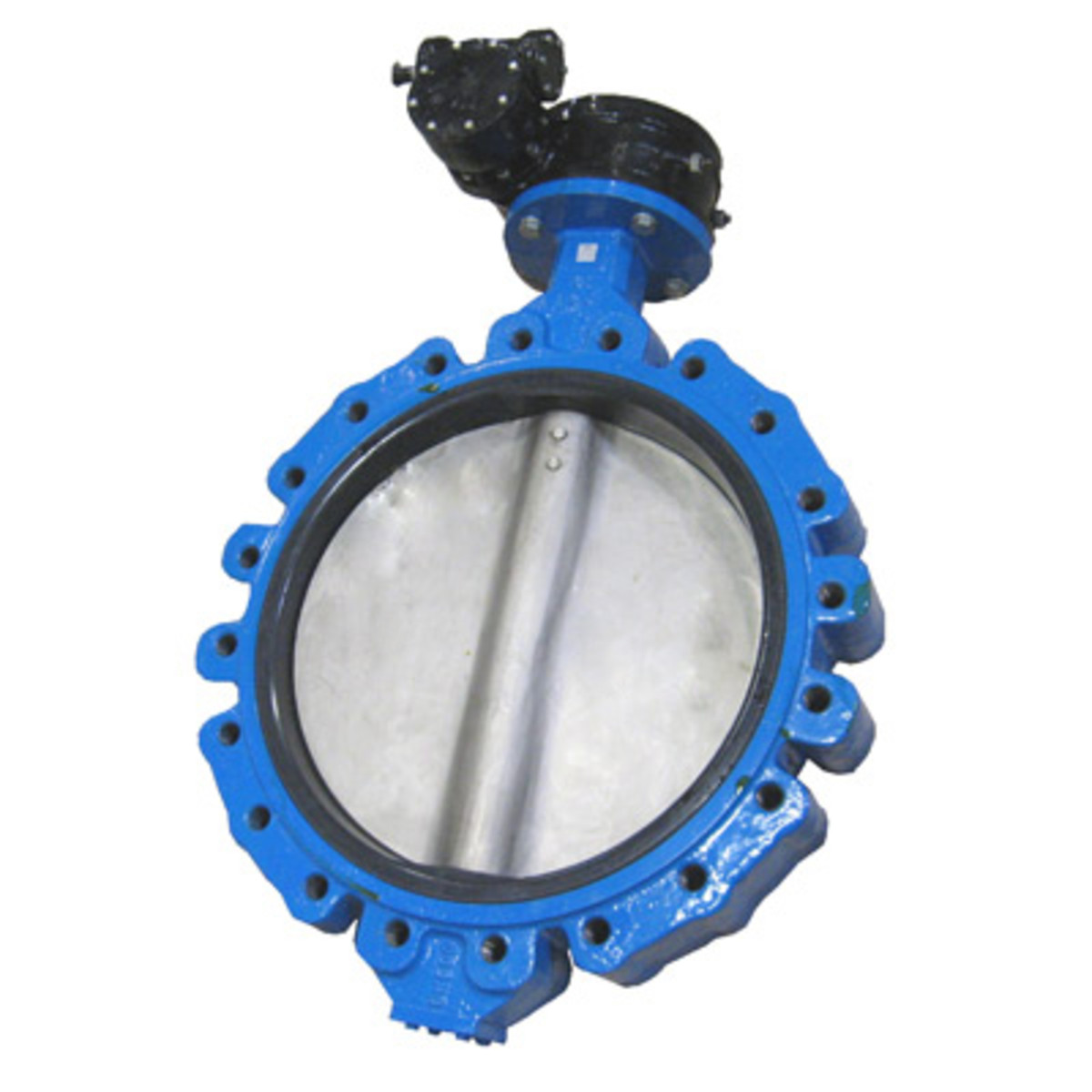

Lug Style Butterfly valve, 150# Shut-off, Ductile iron body, Nickel Plated Ductile Iron disc, BUNA capsule seat, manual gear operator w/ handwheel.

LBL-2000 Series

200 WOG Lug Stainless Steel Butterfly Valve with Lever Handle

  • Valves meet MSS-SP67 & API 609
  • Flange drilling to: ANSI B16.1 Class 125/150
  • Testing to: API 598

Butterfly Valve Options

  • Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
  • Disc: Nickel plated Ductile iron, nylon coated ductile Iron, aluminum bronze, 316 stainless steel.
  • Body: Cast iron, ductile iron.

Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.


All 2000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.

Additional information


LBL-2000-11DBG14 14", LBL-2000-11DBG16 16", LBL-2000-11DBG18 18", LBL-2000-11DBG20 20", LBL-2000-11DBG24 24", LBL-2000-11DBG30 30"
