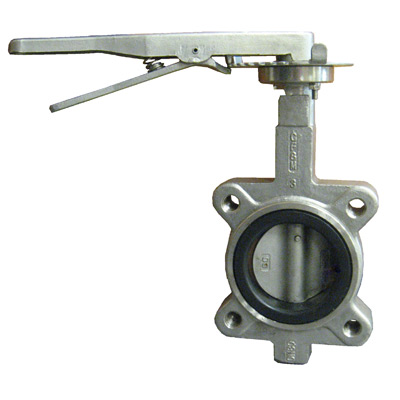

LBW-2000-22DVL-S6 Wafer Style butterfly valve 316 Stainless Steel body disc & stem

SKU: LBW-2000-22DVL-S6 Categories: ,

Wafer Style butterfly valve, 316 Stainless Steel body, disc & stem, Viton Seat, c/w 304 Stainless Steel Lever Handle


LBW-2000 Series

200 WOG Wafer Stainless Steel Butterfly Valve with Lever Handle

  • Valves meet MSS-SP67 & API 609
  • Flange drilling to: ANSI B16.1 Class 125/150
  • Testing to: API 598

Valve Options

  • Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
  • Disc: Nickel plated Ductile iron, nylon coated ductile Iron, aluminum bronze, 316 stainless steel.
  • Body: Cast iron, ductile iron.

Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.


All 2000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.

Additional information


LBW-2000-22DVL-S6020 2", LBW-2000-22DVL-S6025 2½", LBW-2000-22DVL-S6030 3", LBW-2000-22DVL-S6040 4", LBW-2000-22DVL-S6060 6", LBW-2000-22DVL-S6080 8", LBW-2000-22DVL-S6010 10"
