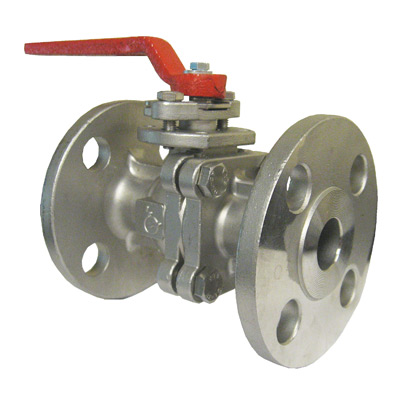

LS-235F-Two piece Stainless Steel Full port Flanged Ball valve

This product is currently out of stock and unavailable.

SKU: LS-235F Categories: ,

Split Flange Class 150 Stainless Steel Full Port Flanged Ball Valve

  • Class 150
  • Flanged Ends
  • ISO 5211 Mounting Pad

Valve Features

  • Split body design with flanged ends for fast installation, in-line maintenance and rebuilding. Solid ball construction provides structural integrity and minimizes flow turbulence.
  • Body join is designed to prevent excessive compression of valve internals, resulting in consistent and low operating torque.
  • Mounting pad complied with ISO 5211 for ease and interchangeability of actuation.
  • Bottom-loaded blow-out proof stem.
  • Investment cast body & cap on sizes 1/2″ to 4″. Sand cast body & cap on sizes 5″ to 10″.
  • Basic design complied with ASME/ANSI B16.34
  • Flanged ends complied with ASME/ANSI B16.5
  • Face-to-face dimensions complied with ASME/ANSI B16.10
  • Tested according to API 598 & ANSI B 16.34

Valve Options

  • F: Fire-safe Design
  • V: Vented ball
  • P: Equipped with pneumatic actuator
  • G: Equipped with gear operator
  • A: Anti-static Device
