LBW-1000-22DBL-Wafer Style Butterfly valve, 200# Shut-off, Cast iron body, Stainless Steel disc, BUNA (DBL) seat, manual lever handle.
Wafer Style Butterfly valve, 200# Shut-off, Cast iron body, Stainless Steel disc, BUNA (DBL) seat, manual lever handle.
LBW 1000 Series

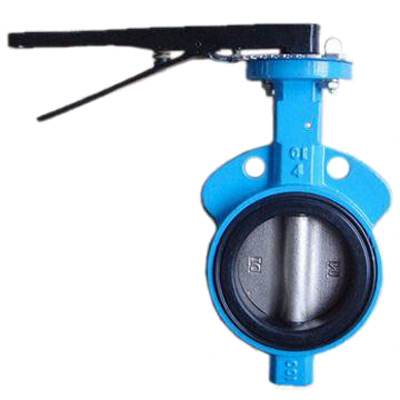

200 WOG Wafer Style Butterfly Valve with Lever Handle
- Valves meet MSS-SP67 & API 609
- Flange drilling to: ANSI B16.1 Class 125/150
- Testing to: API 598
- Seats: Buna-N, EPDM, Hypalon, Viton, Neoprene, PTFE.
- Disc: Nickel plated Ductile iron, nylon coated ductile Iron, aluminum bronze, 316 stainless steel.
- Body: Cast iron, ductile iron.
Note: Please refer to “Numbering System” sheet to obtain detailed figure numbers.
All 1000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.
LBW-1000-22DBL02 2", LBW-1000-22DBL025 2½", LBW-1000-22DBL03 3", LBW-1000-22DBL04 4", LBW-1000-22DBL05 5", LBW-1000-22DBL06 6", LBW-1000-22DBL08 8", LBW-1000-22DBL10 10", LBW-1000-22DBL12 12"
